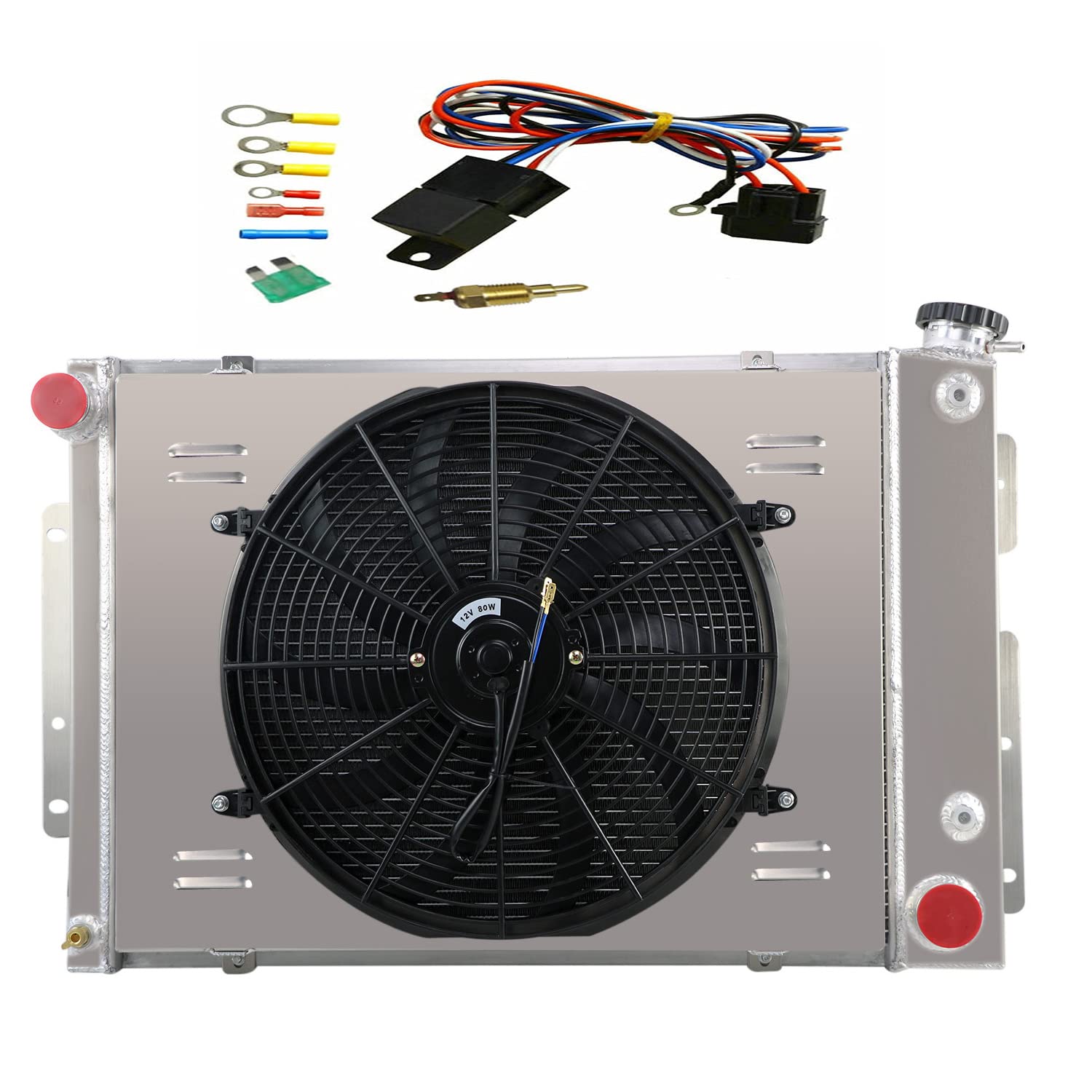

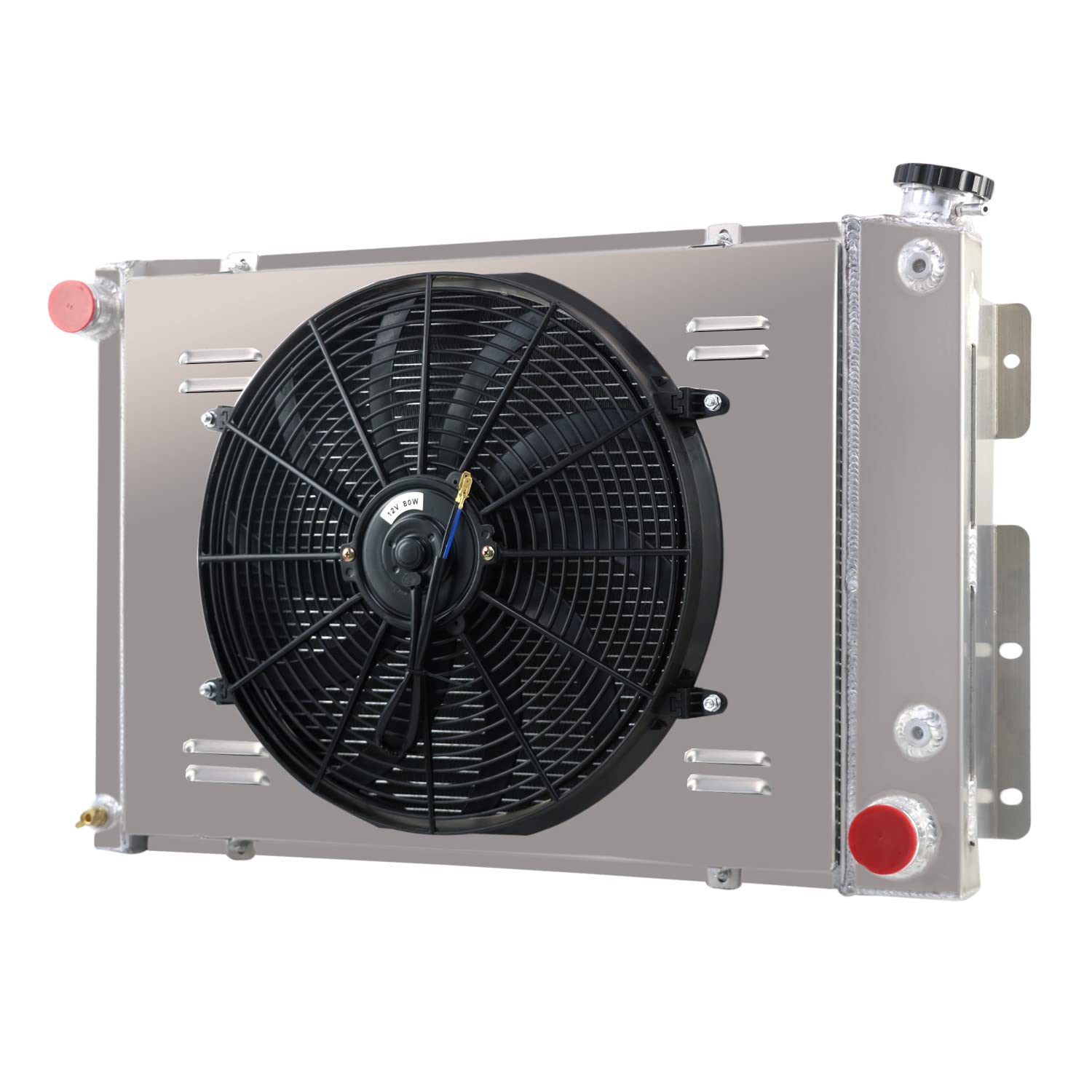

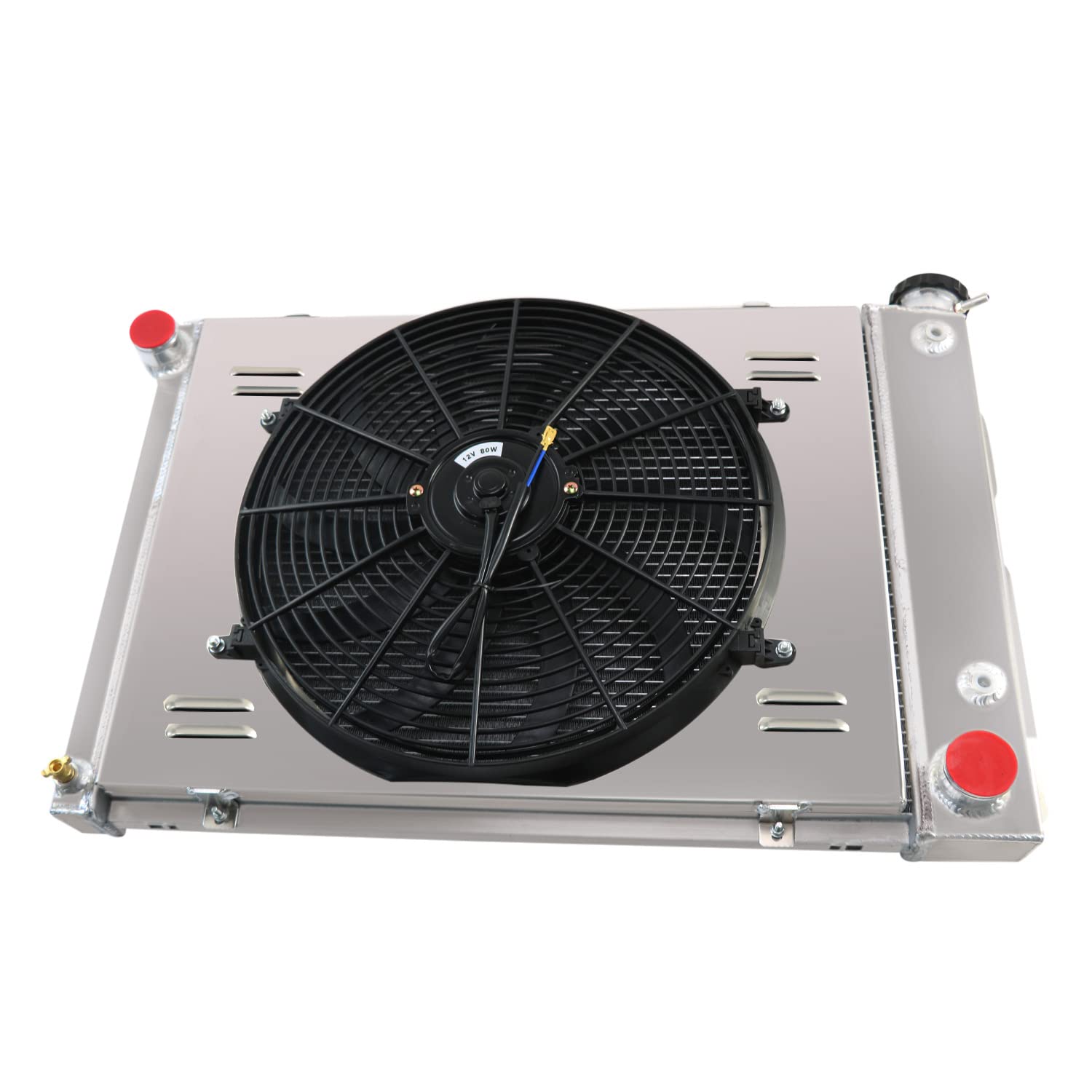

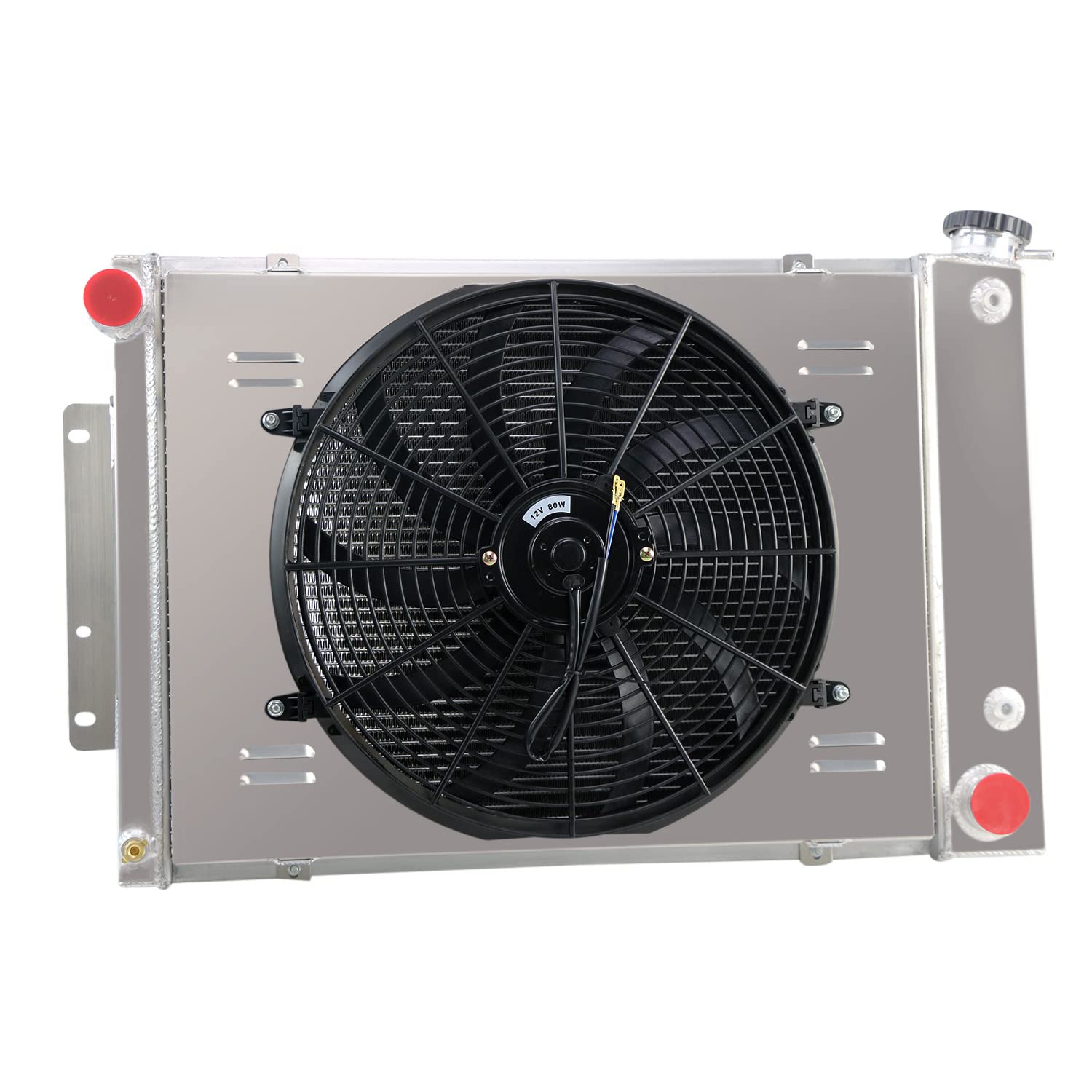

High-Performance 4-Row Full Aluminum Radiator with Fan Shroud & Thermostat Relay Kit for 1967-1969 Chevy Camaro - 23" Core (AT/MT) - Perfect for Engine Cooling & Performance Upgrades

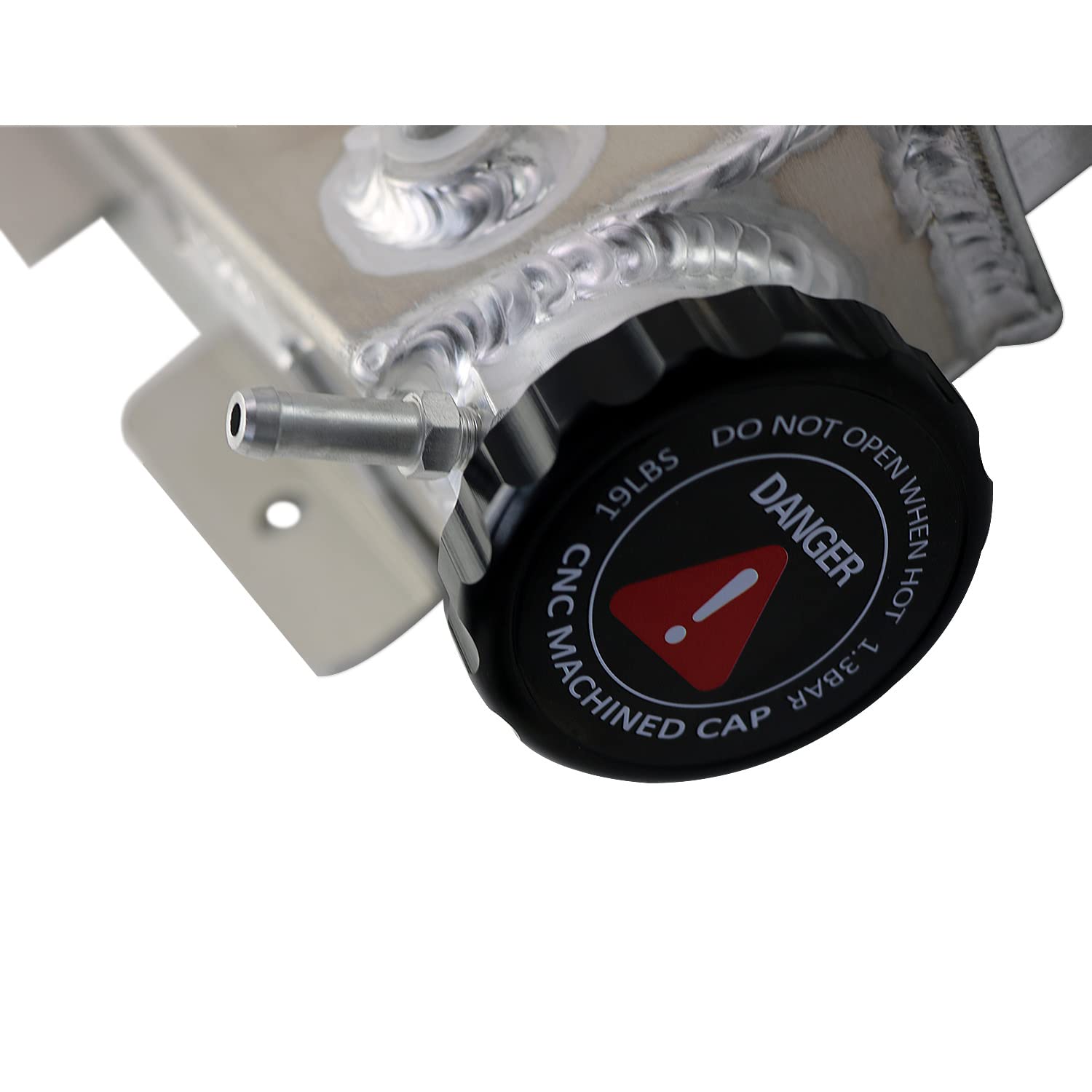

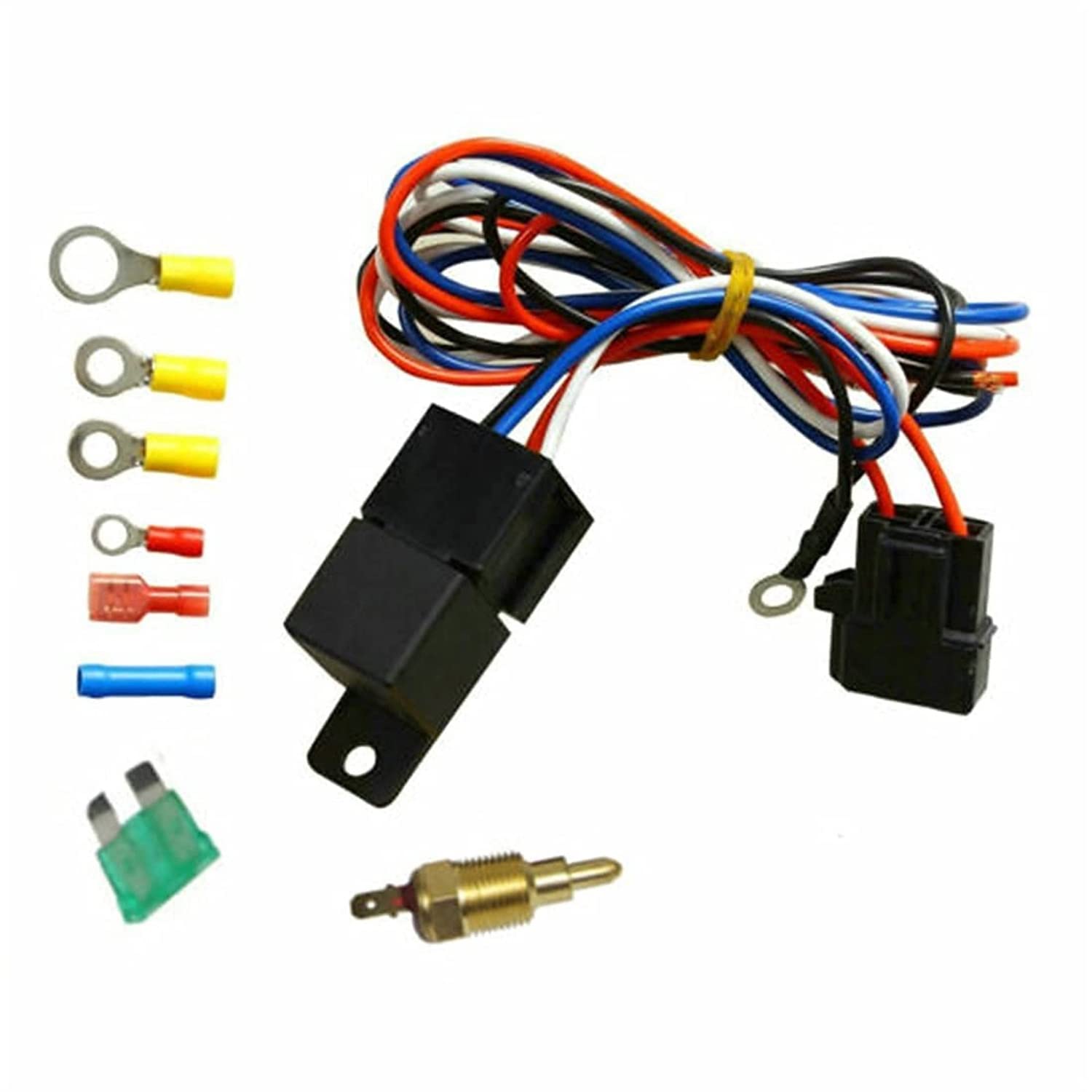

The radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. It's a lightweight construction, 100% brazed aluminum, polished end tank. The radiator showed a 20degF drop in outlet temp compared to the OEM. Every Performance Radiator is a direct OEM fit, making installation effortless, no cutting or modification is required. Radiator Size Row: 4 Row Core Radiator Cap: included Core and Tank: All Aluminum Core Dimensions: 17" High x 23" Wide x 2 1/2" T. Overall Dimensions: 19-1/4" High (top of cap) x 30-1/4" Wide (Incl. Brackets) x 5" T Upper INLET: 1-1/2" located on the DRIVER side. Lower OUTLET: 1-3/4" located on the PASSENGER side. Mounting System: Bracket Fit 23" core only FANS Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe. Probe typically threads into radiator, water outlet or manifold. Vehicle Fitment Comaptible For 67 68 69 Pontiac Firebird Comaptible For 67 68 69 Camaro Big Block Comaptible For 67 68 69 Firebird Big Block Comaptible For 67 68 69 Chevy Camaro 23"-Core Comaptible For Pontiac Firebird / Trans Am 67 68 69 Interchange Part Number: 370 0370 DPI370 CC370 CU370 MC370 R0370 R370-ACP R370-LKQ Other Part Number: 040876433700 3010101 3010180 3010181 3010183 3014093 OEM Part Number: 3014094 3014095 3014096 675-01080B

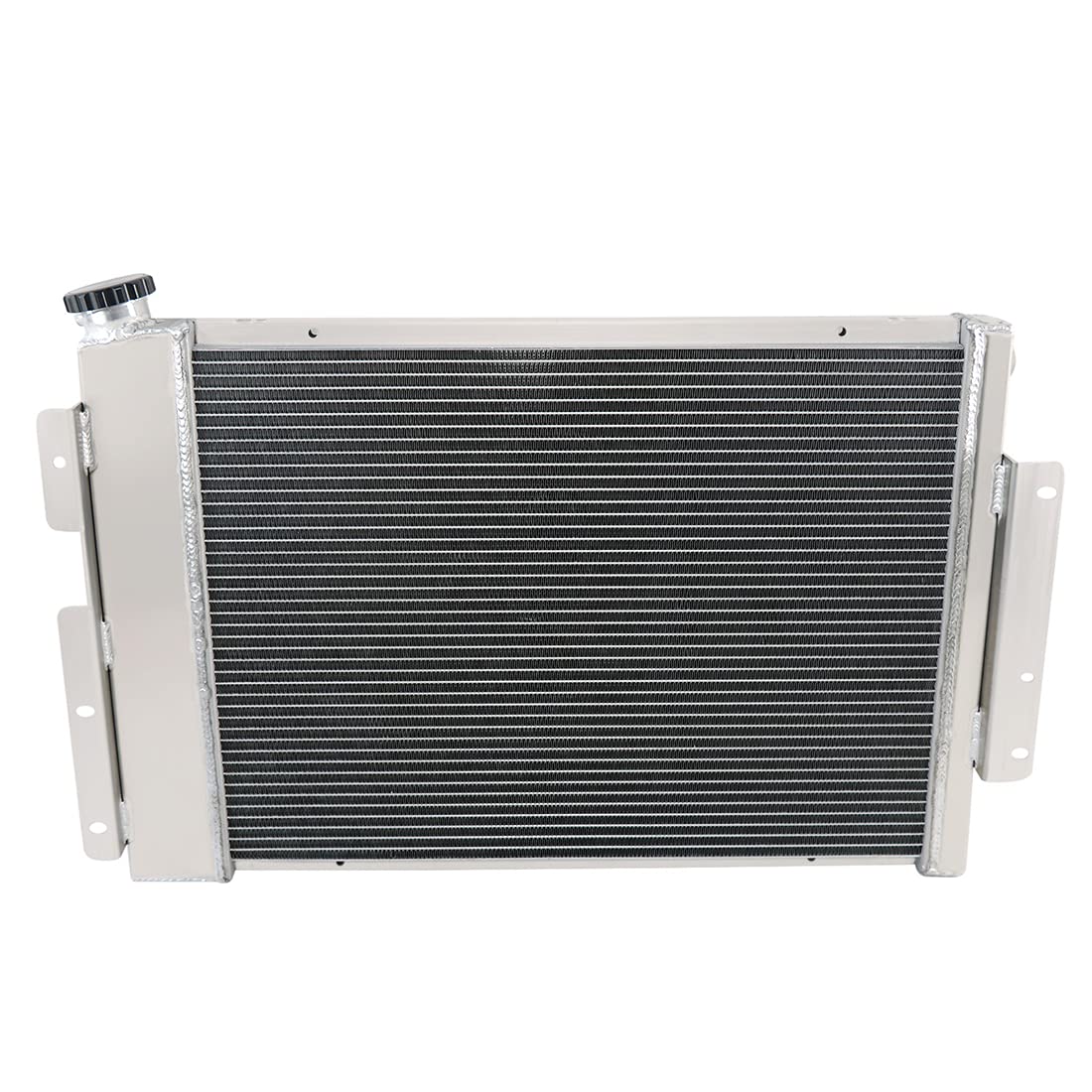

Core Dimensions 17" High x 23" Wide x 2 1/2" T

Full T-6061 Aluminum Construction, 100% Welded By TIG

The internal trans cooler to provide optimal fluid temperatures for auto trans

Precision-engineered by in-house team of automotive experts, heavy-duty design withstands harsh conditions to deliver enduring quality

Light Weight Direct Bolt-On OEM Fitment or Replacement, Stronger & Higher Capacity for Coolant than Stock One
